Specifications
| Material | Silicone |
|---|---|
| Colour | Red |
| Maximum service temperature | 260° C |
| Temperature class (continuous operation) | T450 and T600 |
| Standard | According to EN 1856-1 |
| Certification | CE 0099-CPR-A71-0001 and 0002 |
| Manufacturer | Bofill |
| Origin | Spain |
| Flue range | Single-wall and insulated twin-wall flue |
| Flue type | Flashings and collars |

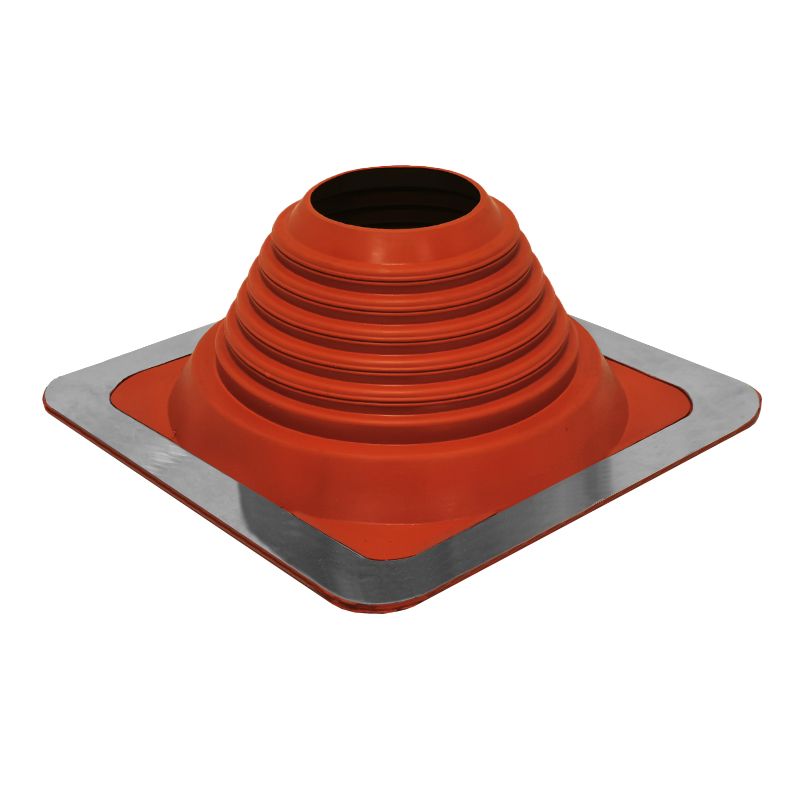

Square flashing in red silicone

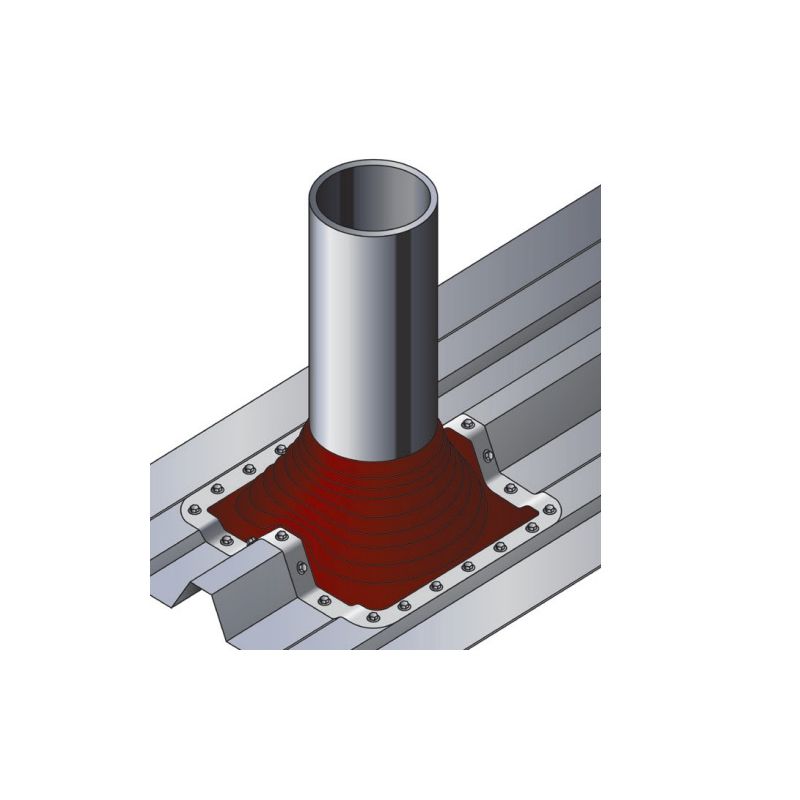

Made from red silicone, this flashing is compatible with steel/sheet-metal roofs, flat tiles and slates, and can be cut to the required diameter, suiting roof pitches of up to 45°: it is the essential accessory when you want to avoid disturbing the roof covering.

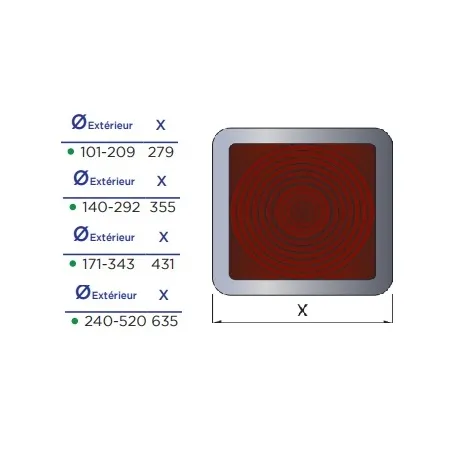

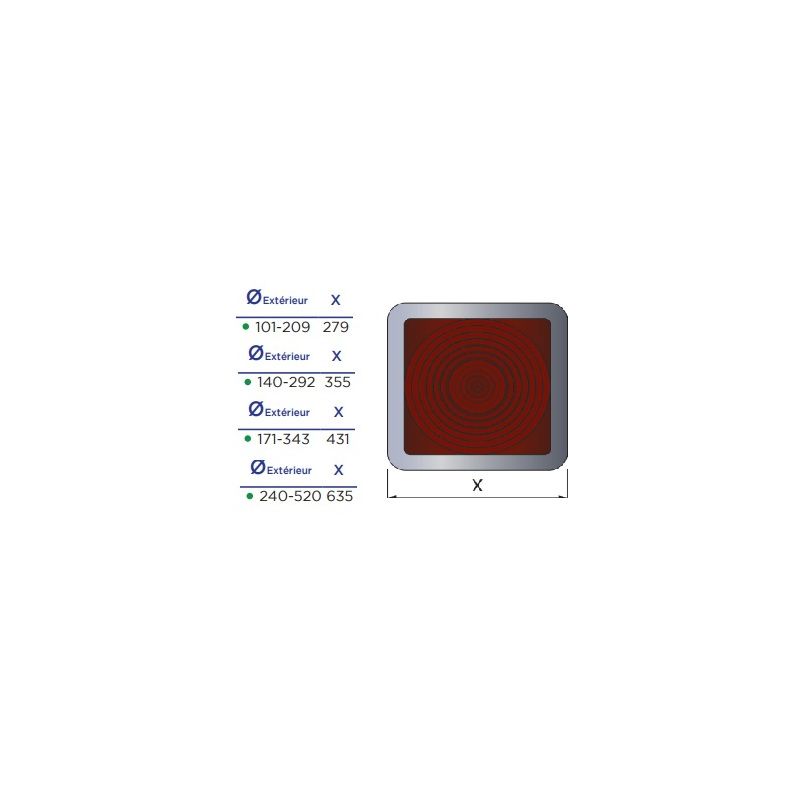

Available in several external diameters, it is compatible with both single-wall and insulated twin-wall flues.
Lead time: 2 to 3 weeks
Related products:
👉 The silicone flashing seals the joint between the roof and the single-wall or insulated twin-wall flue by fitting directly around it.
Its excellent elasticity allows it to follow the shape of the roof or tiles while accommodating the building's movement and expansion without ever tearing.
It withstands temperatures of up to 260° C.
Fitting advice:
1- The silicone flashing is graduated: simply cut it to the exact diameter of your pipe for a tight, watertight fit.
2- Slide the flashing along the pipe, using a little soapy water to help it slide
3- Shape the base by hand or with a rubber mallet so that it follows the contours of the roof.
4- Apply a bead of high-temperature silicone sealant under the metal base
5- Fix the base to the roof using self-drilling screws spaced 3 to 5 cm apart.
✅ For optimum watertightness, we recommend using the sealing kit for silicone and EPDM flashings.
⚠️ For installation around an insulated twin-wall flue, be sure to measure the external diameter of the DPI flue.
Reminder of the inside and outside diameters of DPI Bofill flues:
Int. 80 mm → Ext. 140 mm
Int. 100 mm → Ext. 160 mm
Int. 125 mm → Ext. 185 mm
Int. 150 mm → Ext. 210 mm
Int. 175 mm → Ext. 235 mm
Int. 200 mm → Ext. 260 mm
