Specifications
| Material | 316L stainless steel (inner) - 304 stainless steel (outer) - 25 mm rock wool |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Wall thickness | 25 mm (⚠️End of line) |
| Maximum service temperature | 600°C |
| Certification | CE - 0036 CPR 9174 030 |
| Origin | Germany |
| Flue range | Insulated twin-wall flue (25 mm wall thickness) |
| Flue type | Bends |
Documentation:
Cutting an insulated twin-wall straight length (in French)
Cutting an insulated twin-wall straight length (in French)
Insulated twin-wall flue assembly instructions (in French)
Assembly instructions for insulated twin-wall flues

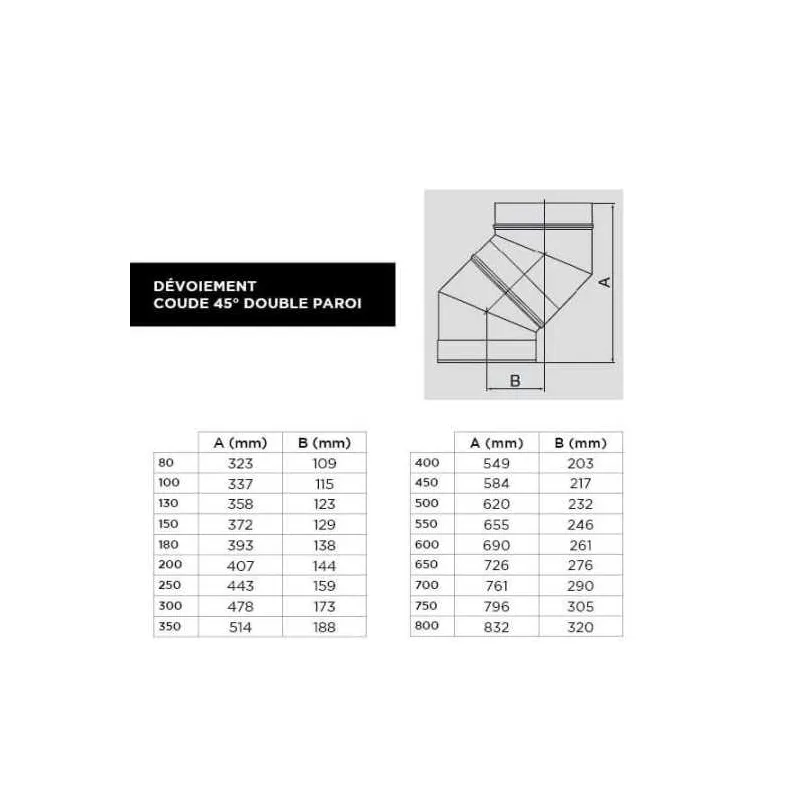

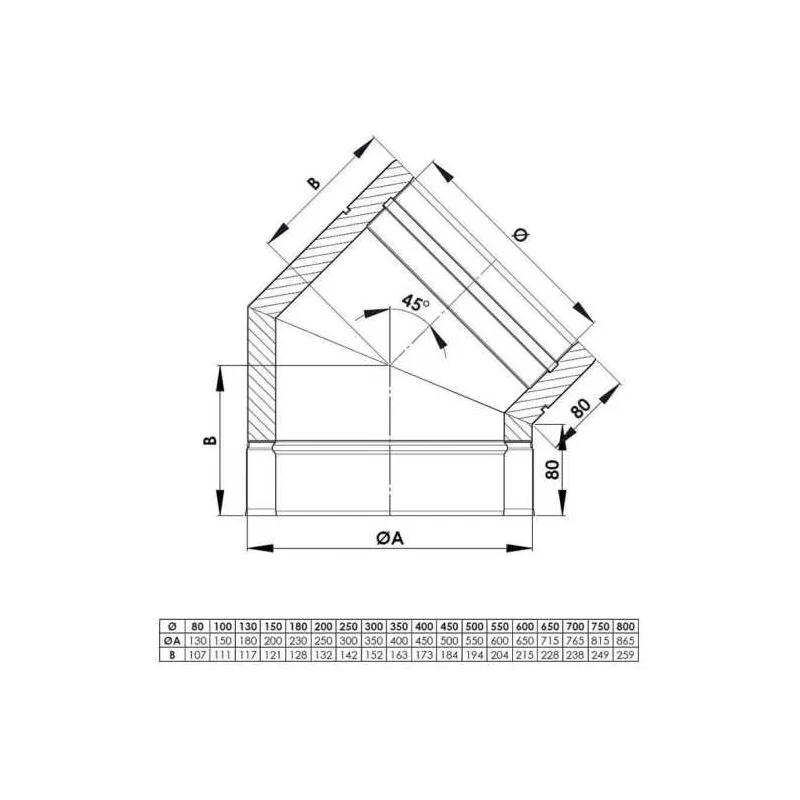

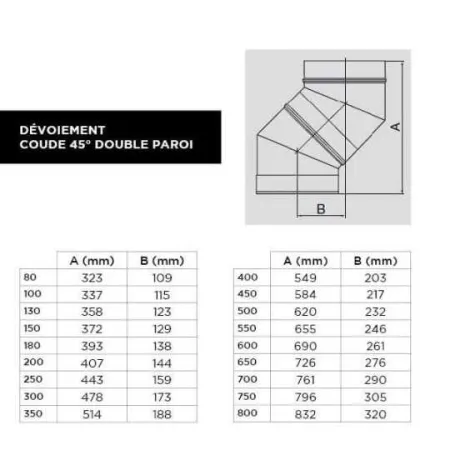

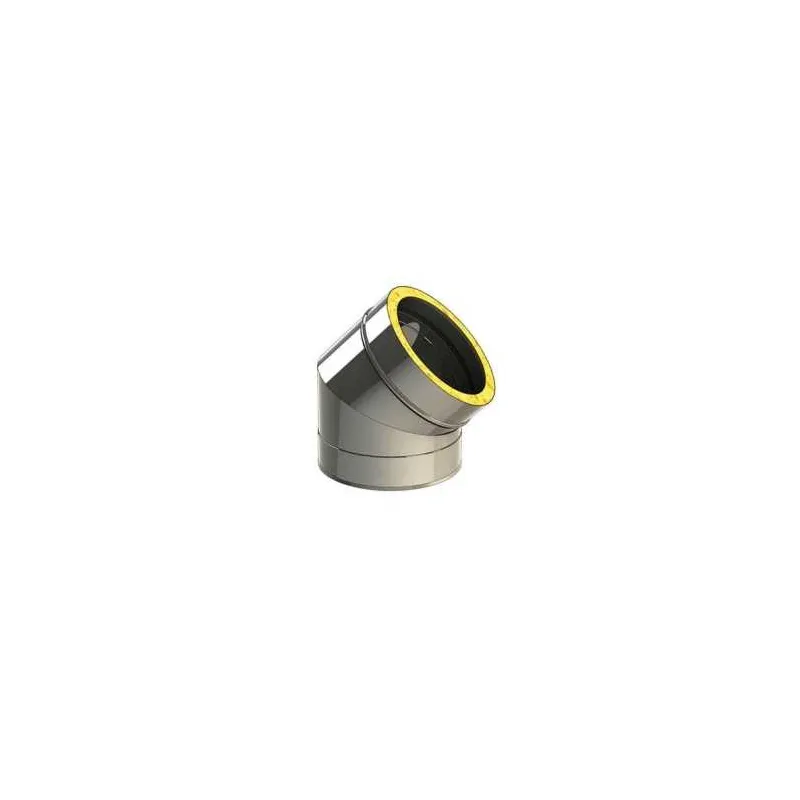

45° elbow - For insulated twin-wall
45° elbow, insulated twin-wall, for managing an offset in the flue of wood-burning heating appliances such as wood stoves, fireplaces, inserts, masonry heaters, as well as pellet boilers and pellet stoves. In 316 L stainless steel (outer wall) and 304 stainless steel (inner wall) with 25 mm thick rigid rock wool insulation.
Available only in diameter 150 mm (⚠️End of line).
Last items in stock
Related products:
✅ In 316 L stainless steel for the inner wall and 304 stainless steel for the outer wall
✅ High-density rigid rock wool insulation (120kg/m3), 25 mm thick
✅ Continuous welding
✅ Male - female connection system with 60 mm socket
✅ Operating temperature up to 600° C
✅ The pipe can be cut to the required size
✅ Wide and attractive 70 mm safety clamps included
✅ Compatible with pellet heating (80 mm to 150 mm diameter)
✅ Compatible with wood heating (130 mm to 250 mm diameter)
✅ CE classifications (EN 1856-1): T600 and T200
