Specifications
| Heat output (1 firing) | 13 kW |
|---|---|
| Useful heat output | 4.5 kW |
| Energy efficiency class | A+ |
| Efficiency | + 80 % |
| Minimum wood load | 5 kg |
| Maximum wood load | 15 kg |
| Log length | 33 cm |
| Material | Cast iron and refractory stone |

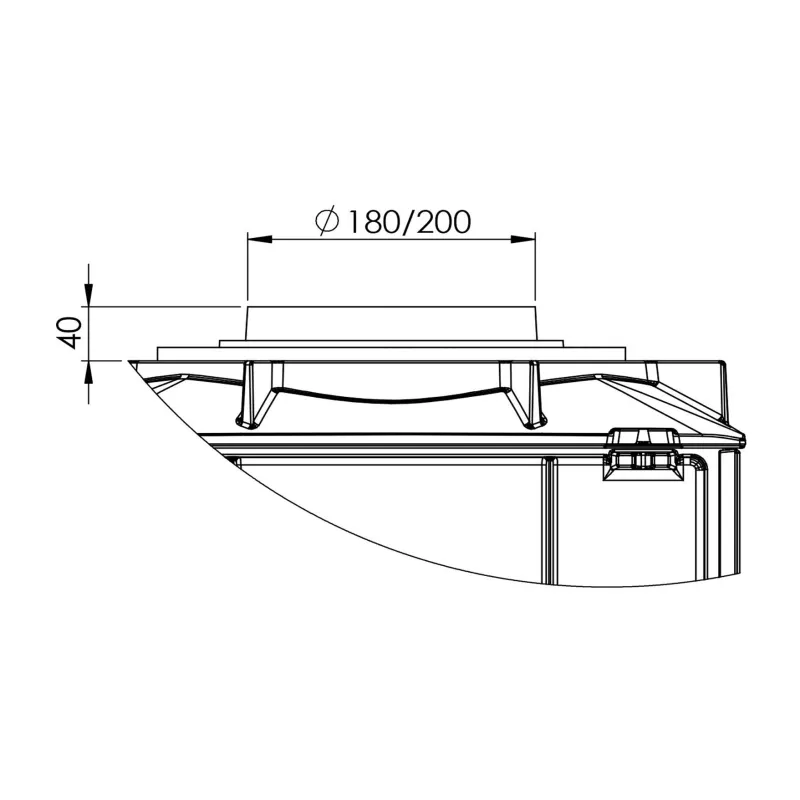

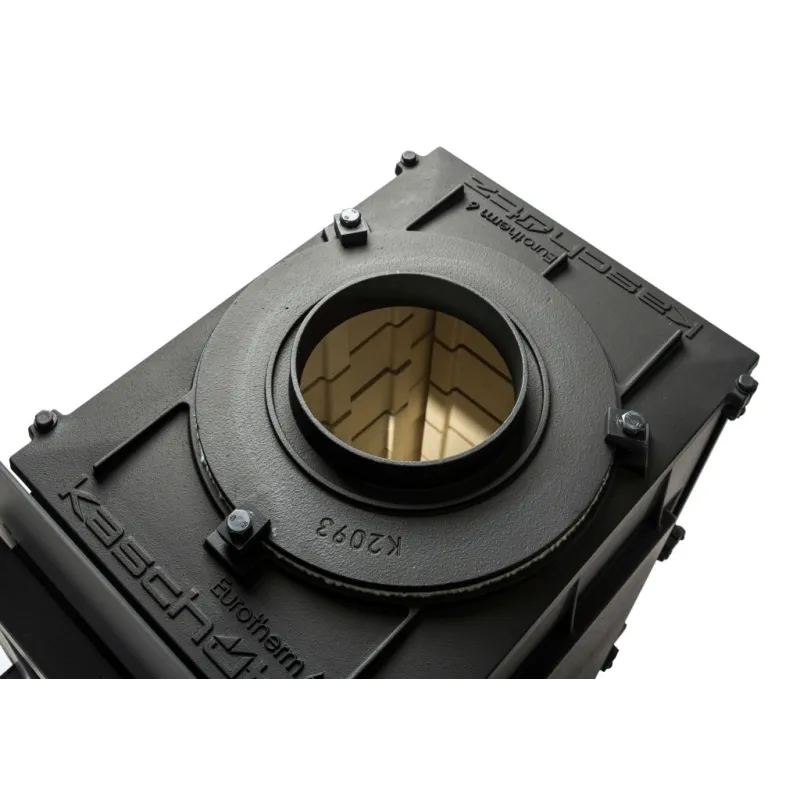

| Flue outlet | Ø 180 or 200 mm |
| Air inlet diameter | 160 or 180 mm |
| Air inlet | Ductable Ductable and automatic |
| Minimum interval between firings | 4 h |
| Draught | 14 Pa |
| Flue gas mass flow rate | 56.3 g / s |
| Energy efficiency index (EEI) | 109.3 |
| Net weight | 195 kg |
| Manufacturer | Kaschuetz |
| Origin | Austria |
| Food contact | No |
| Contains wood | No |
Documentation:
Eurotherm 10 technical data sheet
Eurotherm 10 technical data sheet
Eurotherm firebox manual (in French)
Eurotherm firebox user manual
Eurotherm 10 performance
Eurotherm 10 declaration of performance
Eurotherm firebox assembly (in French)
Eurotherm firebox installation manual

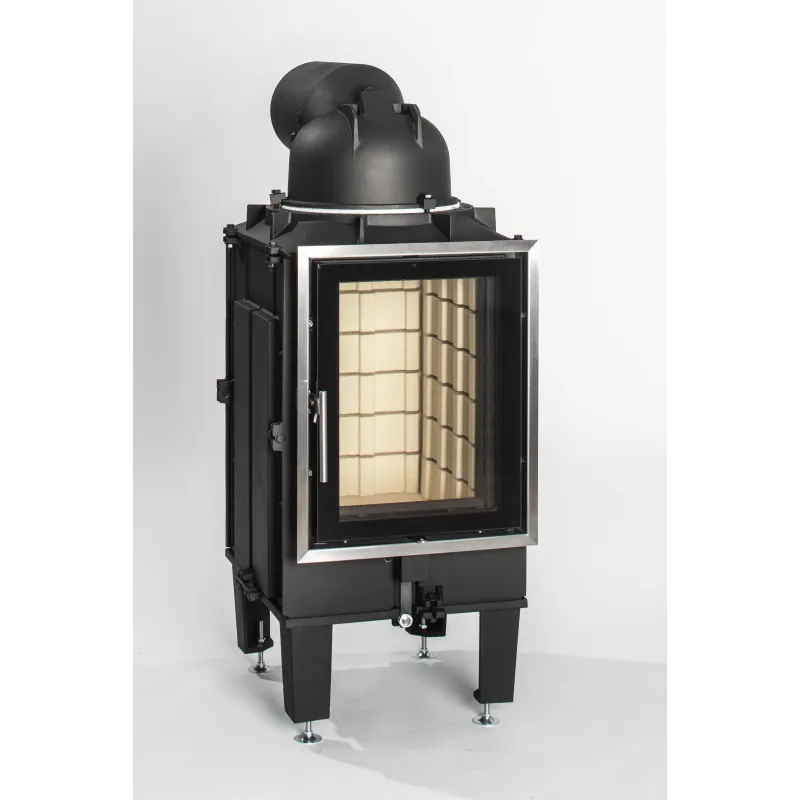

Eurotherm 10 Automatic cast iron firebox - 13 kW / 15 kg
15 kg / 13 kW cast iron firebox for building high-quality made-to-measure heat-storage stoves with electronic combustion control system, double-glazed door and firebox with multi-point air injection (UZ37).
- Load: 5 to 15 kg per firing
- Nominal heat output: 13 kW
- Efficiency: > 80 %
Sur Commande
Price:
€4,586.40
Tax included
Air inlet
Flue outlet

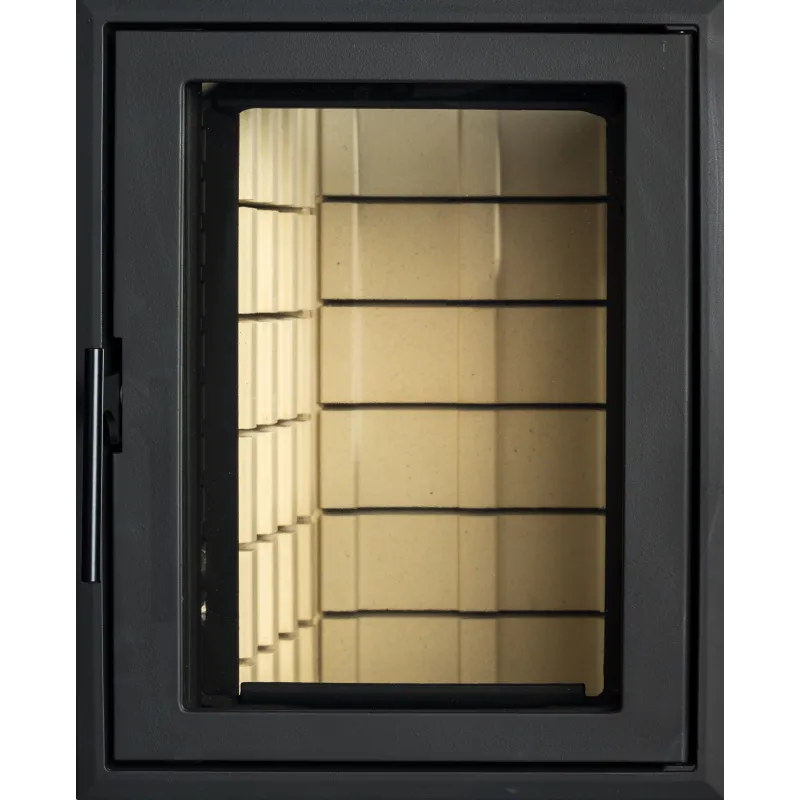

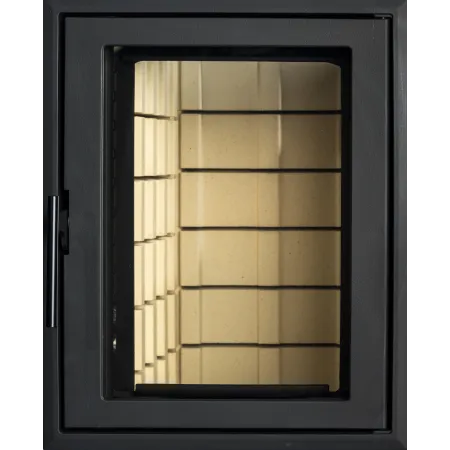

Door model
Product customization
Don't forget to save your customization to be able to add to cart
Specific 15 kg / 13 kW cast iron firebox for building high-quality made-to-measure double-sided heat-storage stoves with vertical double-glazed glass and firebox with multi-point air injection (UZ37), fitted with the "Euromatic" electronic combustion control system.
✅ Energy efficiency class: A+
✅ Nominal heat output: 13 kW
✅ Logs: 33 cm
✅ Weight: 195 kg including 70 kg of refractory stones
✅ Efficiency: > 80 %
✅ Harmonised technical specifications (standards): EN 13229, 1. BIMSCHV Stufe2, Art 15a (ab 2015), UZ 37

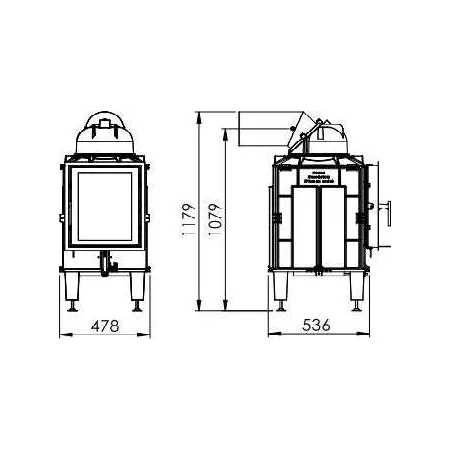

✅ Combustion chamber dimensions: 295 (W) x 375 (D) x 500 mm (H)

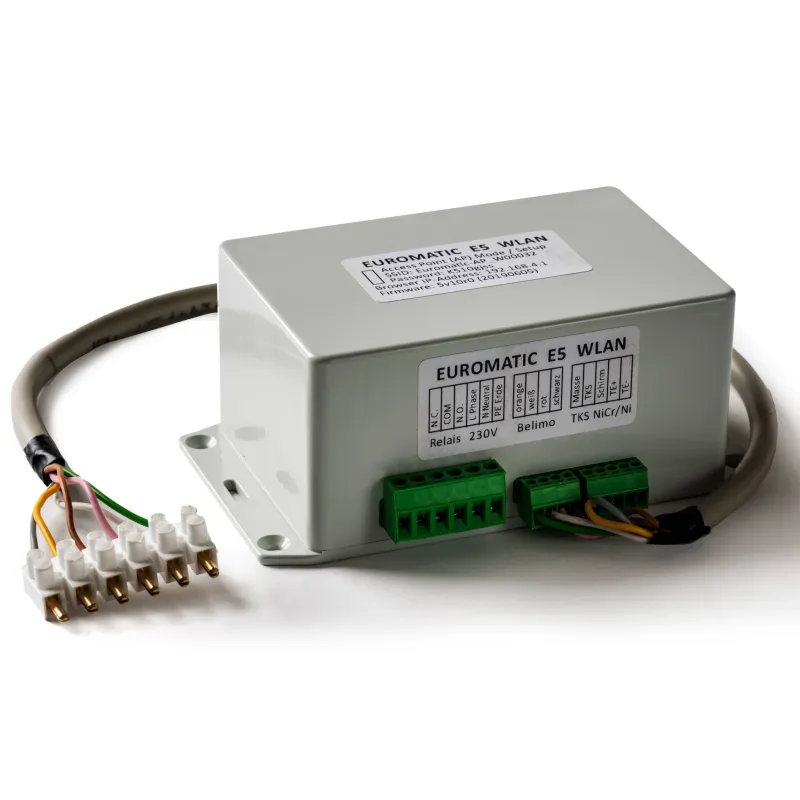

Description of the Euromatic electronic combustion control system:
The Euromatic combustion control closes the combustion air supply at the optimal moment, in several control stages and fully automatically: no more waiting or checking, Euromatic does it for you.
Compatible with installations using internal (in the room) or external (outdoor) combustion air.
This system is controlled either by Wi-Fi via an app to download on your smartphone, or by a wall-mounted touch screen.

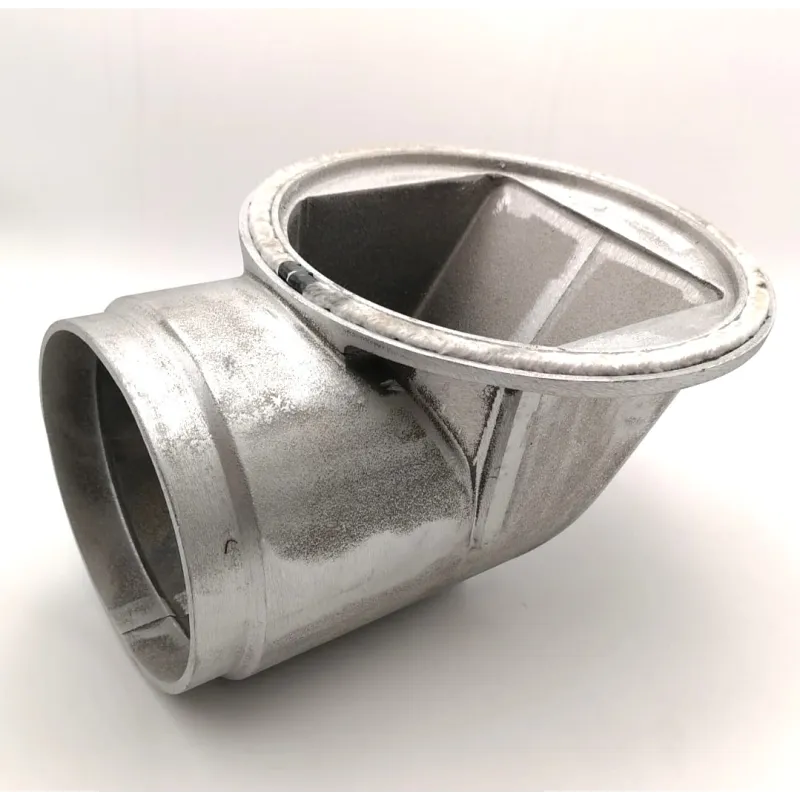

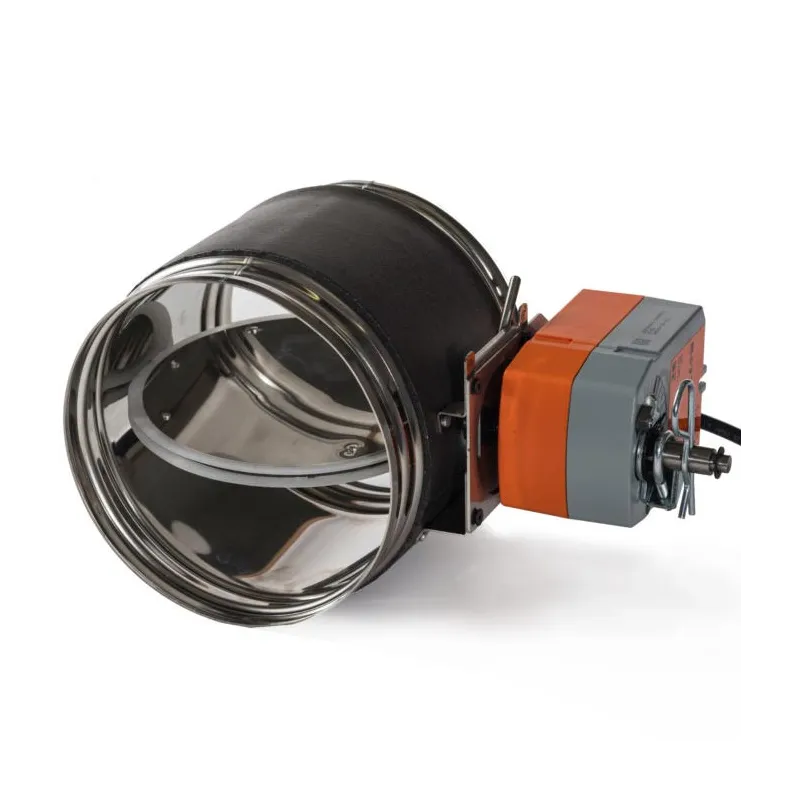

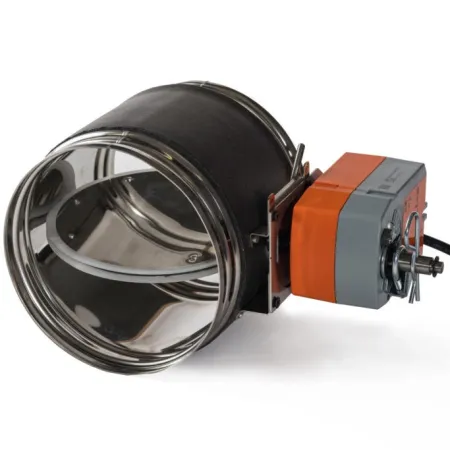

On the Eurotherm 10 model, the air outlet is vertical (Ø 160 mm) or horizontal (Ø 160 or 180 mm): the system is supplied with the horizontal or vertical adapter, the aluminium flexible hose and the motorised air damper.
