Specifications
| Material | 316L stainless steel (inner) - 304 stainless steel (outer) - 30 mm rock wool |
|---|---|
| Colour | Black |
| Finish | Matt lacquered |
| Length (overall) | 470 mm |
| Wall thickness | 30 mm |
| Maximum service temperature | 600°C |
| Thermal resistance | 0.443 m² K/W |
| RAL paint | RAL 8022 |
| Temperature class (continuous operation) | T450 and T600 |
| Standard | According to EN 1856-1 |
| Certification | CE 0099-CPR-A71-0001 and 0002 |
| Manufacturer | Bofill |
| Origin | Spain |
| Flue range | Bofill insulated twin-wall flue (30 mm wall thickness) |
| Flue type | Connectors and adapters |

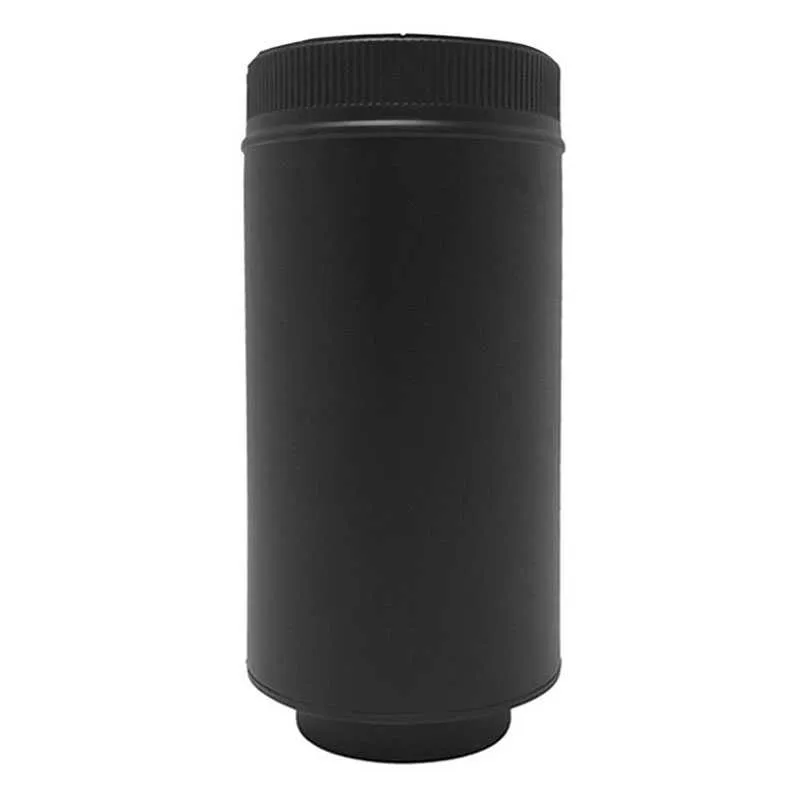

Single-wall to insulated twin-wall adapter - DPI 316L stainless steel, black
Black lacquered stainless steel connector allowing the stove's connecting flue pipe (single-wall) to be fitted into the insulated twin-wall chimney flue. Its 375 mm working length and its ingenious system let the single-wall pipe slide inside, making assembly and dismantling easier.
Available in various diameters, with or without a change of diameter on the twin-wall insulated side.
Lead time: 2 to 3 weeks
Related products:
👉 The single-wall to twin-wall insulated adapter is an essential component for a tight, secure connection between the rigid connecting flue pipe of the heating appliance and the twin-wall insulated chimney flue.

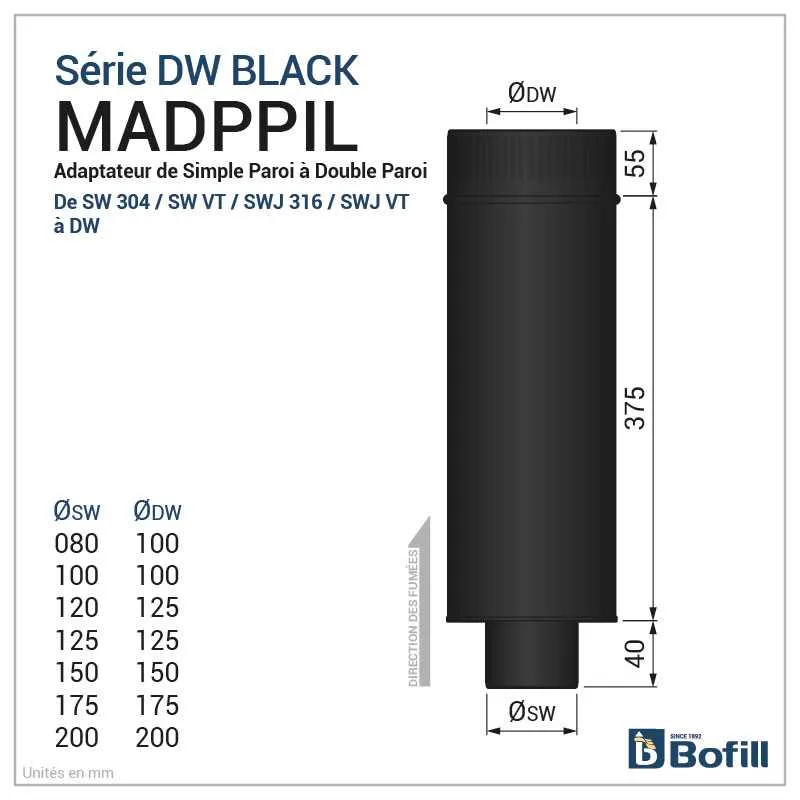

Its clever design allows the stove pipe to be fitted and removed easily: on the stove side, the (Male) connector is 375 mm high in twin wall, which allows the rigid pipe to be pushed up inside it so it can be removed, cleaned and refitted easily. With this type of connector, a sliding stove pipe is no longer needed!
➡️ For a flawless finish, we recommend combining this connector with the black finishing rosette 0° or the black rosette in 2 parts 1 to 10° (or other angles).
⚠️ Bofill insulated twin-wall flue accessories may be compatible with other brands of flue provided they have the same internal / external dimensions.
Reminder of the inside and outside diameters of DPI Bofill flues:
Int. 80 mm → Ext. 140 mm
Int. 100 mm → Ext. 160 mm
Int. 125 mm → Ext. 185 mm
Int. 150 mm → Ext. 210 mm
Int. 175 mm → Ext. 235 mm
Int. 200 mm → Ext. 260 mm
In which applications should 316 stainless steel twin-wall insulated (DPI) flues be used?
Bofill modular twin-wall insulated stainless steel flues are multi-fuel:
✅ Flue gas removal from wood stoves, inserts, fireboxes and wood, biomass and pellet boilers
✅ Flue gas removal from natural-draught gas fireboxes and boilers
✅ Flue gas removal from gas and oil boilers for domestic and industrial heating and hot water production.
✅ Hot air generators
What is a Bofill Black twin-wall insulated modular flue?
Bofill twin-wall insulated flues are made up of:
➡️ An inner wall in AISI 316L stainless steel, 0.4 mm thick
➡️ An outer wall in AISI 304 stainless steel, 0.4 mm thick, lacquered matt black (RAL 8022).
➡️ Rock wool insulation (high density, 150 kg/m³), 30 mm thick
The elements are connected by a 55 mm male/female spigot system and included joining collars that make installation easier and avoid thermal bridges.
