Specifications
| Material | 304 stainless steel |
|---|---|
| Colour | Black |
| Maximum service temperature | 600°C |
| Temperature class (continuous operation) | T450 and T600 |
| Standard | According to EN 1856-1 |
| Certification | CE 0099-CPR-A71-0001 and 0002 |
| Manufacturer | Bofill |
| Origin | Spain |
| Flue range | Bofill insulated twin-wall flue (30 mm wall thickness) |
| Flue type | Clamps and brackets |

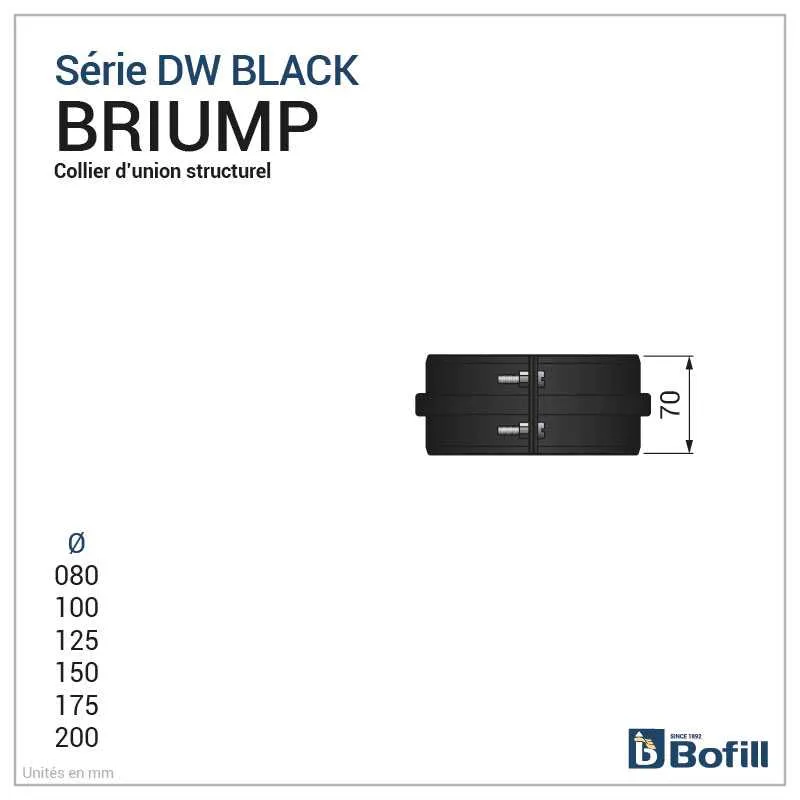

Reinforced locking band, black - For DPI

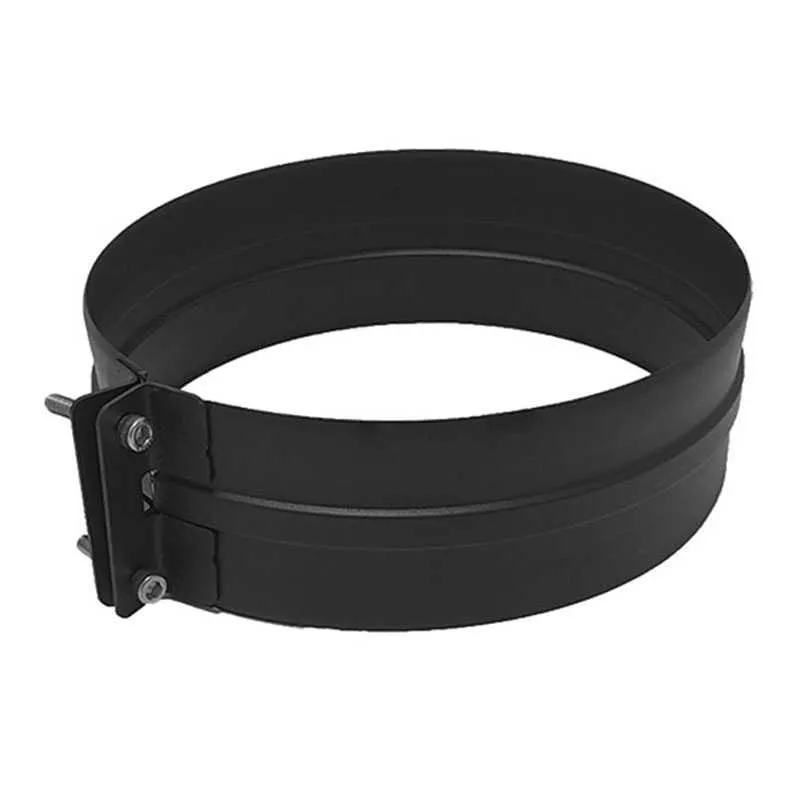

Black structural locking band for reinforcing the joints of insulated twin-wall flues of wood-burning heating appliances such as stoves, fireplaces, inserts, masonry heaters, as well as pellet boilers and pellet stoves.
In black-lacquered 304 stainless steel, available in diameters from 80 mm to 200 mm.
Lead time: 2 to 3 weeks
Related products:
👉 The reinforced black structural locking band tightens and thus reinforces the joint between two elements of the black DPI flue in order to increase the stability and rigidity of the whole installation against wind loading on the flue where it exits the roof. It is recommended to use this type of band above 2 metres in height (free-standing flue).
⚠️ Bofill insulated twin-wall flue accessories may be compatible with other brands of flue provided they have the same internal / external dimensions.
Reminder of the inside and outside diameters of DPI Bofill flues:
Int. 80 mm → Ext. 140 mm
Int. 100 mm → Ext. 160 mm
Int. 125 mm → Ext. 185 mm
Int. 150 mm → Ext. 210 mm
Int. 175 mm → Ext. 235 mm
Int. 200 mm → Ext. 260 mm
In which applications should 316 stainless steel twin-wall insulated (DPI) flues be used?
Bofill modular twin-wall insulated stainless steel flues are multi-fuel:
✅ Flue gas removal from wood stoves, inserts, fireboxes and wood, biomass and pellet boilers
✅ Flue gas removal from natural-draught gas fireboxes and boilers
✅ Flue gas removal from gas and oil boilers for domestic and industrial heating and hot water production.
✅ Hot air generators
What is a Bofill Black twin-wall insulated modular flue?
Bofill twin-wall insulated flues are made up of:
➡️ An inner wall in AISI 316L stainless steel, 0.4 mm thick
➡️ An outer wall in AISI 304 stainless steel, 0.4 mm thick, matt black lacquered (RAL 8022).
➡️ Rock wool insulation (high density, 150 kg/m³), 30 mm thick
The elements are connected by a 55 mm male/female spigot system and included joining collars that make installation easier and avoid thermal bridges.
