Specifications
| Material | Aluminium and 304 stainless steel Lead and 304 stainless steel |
|---|---|
| Colour | Grey |
| Finish | Gloss |
| Wall thickness | 0.4 mm |
| Maximum service temperature | 600°C |
| Temperature class (continuous operation) | T200 and T600 |
| Standard | According to EN 1856-1 and EN 1856-2 |
| Certification | CE 0099-CDP-A71-0031 and 0033 and 0035 |
| Manufacturer | Bofill |
| Origin | Spain |
| Flue range | 0.4 mm stainless steel single-wall flue |
| Flue type | Flashings and collars |

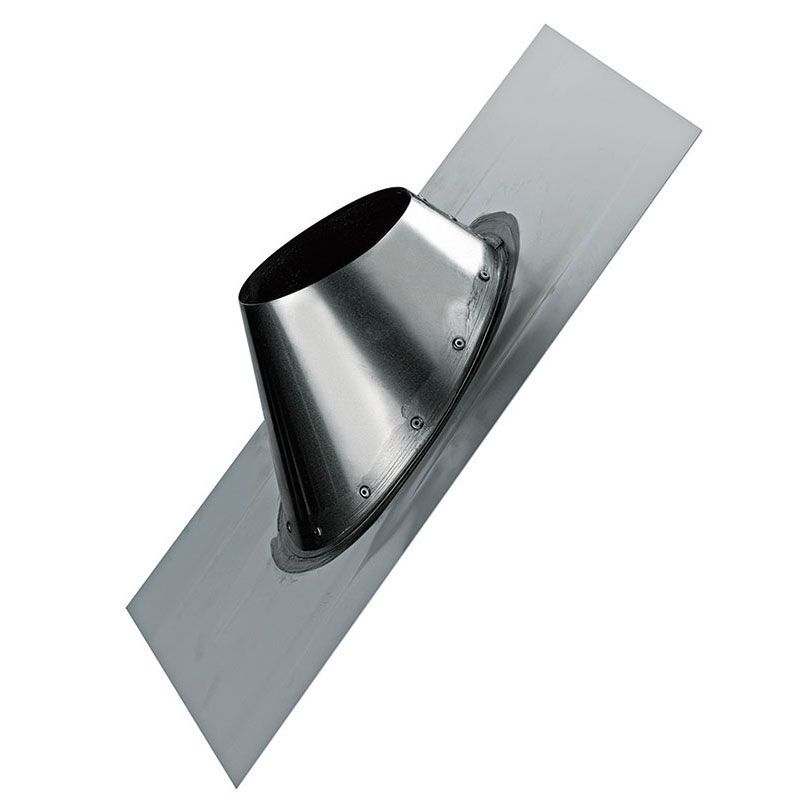

Aluminium flashing for 0 to 45° roofs - 0.4 mm stainless steel flue pipe
Aluminium and stainless steel flashing used to seal the roof penetration of rigid flue liners (in an existing masonry chimney) for wood-burning appliances such as stoves, fireplaces, inserts, masonry heaters...

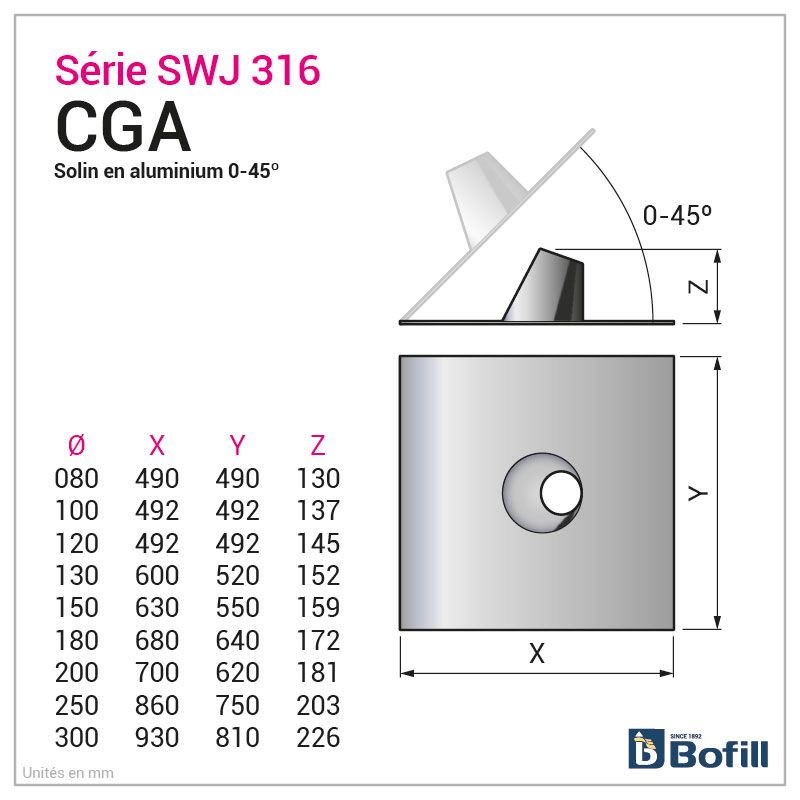

Available in diameters from 80 mm to 200 mm.
Lead time: 2 to 3 weeks
Related products:
👉 The aluminium roof flashing with 304 stainless steel upstand cone provides a watertight seal where single-wall stainless steel lined chimney flues pass through the roof: suitable for roofs with apitch of between 0 and 45°.
Particularly valued for its light weight, corrosion resistance and malleability, the aluminium flashing adapts to different roof shapes: it slides around the single-wall flue, under the tiles above and over the tiles below, so that water can run off naturally down the slope.
🔥As a reminder, flue pipes must be installed in the direction of the condensates, i.e. male end downwards.
Where can 316L stainless steel single-wall flues be used?
Bofill modular single-wall stainless steel flues are multi-fuel:
✅ Flue gas evacuation from wood stoves, inserts, fireboxes and wood, biomass and pellet boilers
✅ Flue gas evacuation from wood-fired ovens, bread and pizza ovens installed indoors or outdoors
✅ Flue gas evacuation from natural-draught gas fires and boilers
✅ Flue gas evacuation from gas and oil boilers for domestic and industrial heating and hot water production.
✅ Fresh air supply
What is a Bofill single-wall stainless steel modular flue?
Bofill single-wall stainless steel flues are made from AISI 316L stainless steel, 0.4 mm thick.
➡️ The sections are connected by a 48 mm Male / Female socket system.
➡️ For diameters from 80 to 150 mm, the airtight joint is made with the Easy Lock system, with no need for a locking band
➡️ For diameters from 180 mm upwards, the airtight joint is made using the locking band not included.
🔥Bofill 316 stainless steel flues are supplied with a silicone seal for operation under P1 pressure class (200 Pa) up to 200 ° C (T200).
For installation without the seal, they can operate at temperatures of up to 600° C (T600) with N1 pressure class (40 Pa).
